HDE24A, Drake High Definition MPEG Encoder Module
|
|
Item Number: HDE24A
Manufacturer: R. L. Drake
Manufacturer Part No: HDE24A
* Whole number only
|

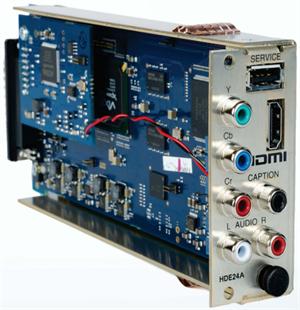

HDE24A High Definition Encoder Module
The Drake HDE24A high-definition encoder module generates an MPEG2 or MPEG4 (H.264) video stream, with Dolby® AC3 or MPEG1 layer 2 audio. This module is designed to be installed into Drake's EH24 or MEQ1000-style chassis which provides the control and output interface to the unit. This configuration of encoder module and host chassis provides the ultimate in bandwidth management and economy by allowing multiple HD and SD streams to be multiplexed together dependent upon the limitations of the bandwidth of the chosen output: QAM and/or ASI (see EH24 and MEQ1000 manuals for more information on multiplexing). The HDE24A high-definition encoder accepts non-encrypted HDMI or component video inputs and can inject closed-captioning data from a synchronized composite video source (typically provided by the same decoder that produces the HD video stream). Composite analog audio inputs provide the audio source when component video inputs are used. Typically HDMI has embedded audio but if the HDMI is derived from a source converter that does not provide audio, such as DVI-to-HDMI, then the analog composite inputs may be used.
SPECIFICATIONS:
Video Inputs:
HDMI-----HDMI input (does not support HDCP/Copy protection)
Component-----1x HD Component (YCrCb) video input
Composite-----1x 1V p-p + /- 3dB, 480i only
Closed Caption Input Format-----1x 1V p-p + /- 3dB 480i composite video input (used for Closed Captioning data extraction during HD encoding)
Audio Inputs:
RCA type L + R-----1x 1Vrms nominal, 3.5Vrms max supports +/- 15dB gain adjustment
HDMI embedded audio-----Supports stereo PCM digital audio from HDMI
Video Options:
Input Video Modes Supported-----480i (640x480/720x480 @30fps)
480p (640x480/720x480 @60fps)
720p (1280x720 @60fps)
1080i (1920x1080 @30fps)
Supports auto-scan for input resolution
Encoder format-----MPEG2 or MPEG4 H.264
Video Adjustments-----Brightness, Contrast, Hue, Saturation, Sharpness
MPEG4 profile support-----Simple, Advanced Simple, High
Bitrate-----Up to 19Mbps (depends on input format)
Audio Options
Encoder format-----Dolby Digital AC-3 or MPEG1 Layer 2
Output bitrate-----320kbps
*for power requirements, see EH24 or MEQ1000 Specifications*
Remember that you can only insert two HD signals per QAM channel. So most of the time use (2) HDE24's and a MEQ1000.
But if you must have EAS capability use (2) HDE24 + (1) EH24 + (1) SDE24EAS (Emergency Alert Encoder) + (2) ASII (ASI input modules).
Click Here for full Specifications |
|
